2025 LAUNCH Creader TPMS 5011 V2 Tire Pressure Monitoring Sensor Service Scanner


2025 LAUNCH Creader TPMS 5011 V2 Tire Pressure Monitoring Sensor Service Scanner. International Buyers - Please Note. Pls do not send back directly without permission. LAUNCH Creader TPMS 5011 V2 TPMS Activation and Diagnostic Tool Upgraded Version of CRT5011E. Creader TPMS 5011 V2 is an intelligent tire pressure system detection terminal based on Android operating system, suitable for tire pressure systems of multiple models of vehicles.

It has the functions of TPMS sensor activation, reading, diagnosis, learning and progarmming. This device is for professional technicians or maintenance personnel. Its application scenarios are mainly various types of automobile repair companies and 4S stores. ABS exhaust, battery matching, brake pad replacement, DP-F regeneration, throttle learning, injector coding, maintenance light reset, steering angle learning, seat calibration, sunroof initialization, door and window calibration.

Tire pressure matching learning can be performed through the OBD interface, E-C-U ID can be read, and the tire pressure system can be diagnosed, including code reading, code clearing, etc. Sensor ID values can be read/copied/written. Sensor data can be written through progarmming, and unlimited repeated progarmming is supported.

Real-time tire pressure data can be read through activation, including sensor ID, tire pressure, temperature, battery status, etc. All 315/433MHZ and 2.4Ghz tire pressure sensors can be activated the activation function of Tesla Bluetooth sensors will be added soon! OE number query, you can query the model menu according to the sensor part number, and the model menu positioning is more accurate. Support the generation and sharing of diagnostic reports, which is conducive to historical diagnostic queries and after-sales maintenance.

Support data feedback, which is conducive to development and timely optimization, and fixed-point push version, helping customers solve vehicle problems in a timely manner. Unit and ID options are directly presented in the vehicle function interface, making settings easier. Supported 11 languages: German, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, Arabic. Supports expansion of tire tread meter, diagnostic feedback, tire pressure maintenance information learning, screenshots and sharing in LAUNCH Academy to meet users' more comprehensive needs.

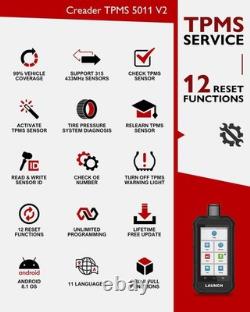

LAUNCH X431 Creader TPMS 5011 V2 scan tool offer faster and smarter TPMS repairs for mechanics or DIYERs. TPMS 5011 V2 TPMS can perform TPMS diagnostic and comprehensive TPMS health check, turn off TPMS MILs, read sensor ID by OBD, sensor activation, reading, learning and progarmming. TPMS 5011 V2 supports both full OBDII/EOBD functions and 12 reset functions.

Let you know the state of the tyres, do-it-yourself to get auto TPMS sensors analyzed and replaced, and can always adjust the tyres to the best condition for driving. Full Functionality for Tire Pressure Monitoring System. LAUNCH Creader TPMS 5011 V2 can fully diagnose TPMS problems, activate TPMS sensors, TPMS relearning and sensor OE number lookup. Help you complete the replacement of the tire pressure sensor, the replacement of the tire, the on-line assembly and testing of the vehicle factory, and the independent detection of whether the sensor itself is correct. LAUNCH Creader TPMS 5011 V2 provides users with an experience of unparalleled efficiency and accuracy.

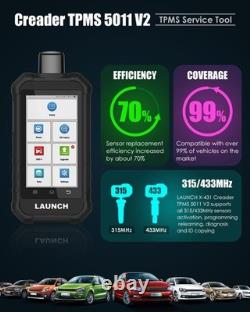

Check sensor data, sensor ID, tire pressure or temperature, battery condition, sensor location and diagnostic TPMS to read or write sensor ID, read or clear TPMS code, turn off TPMS warning light, retrieve TPMS E/CU information, and more. This TPMS tool allows users to progarm sensor data to LAUNCH sensors to replace tire pressure sensors that are not working properly and have low battery life. LAUNCH Creader TPMS 5011 V2 can activate all 315/433MHz tire pressure sensors.

Allows users to activate TPMS sensor to view sensor data, such as sensor ID, tire pressure, tire frequency, tire temperature and battery condition. Allows you to check and view the detailed TPMS sensor relearn procedures. Relearn operation applies only when the newly progarmmed sensor IDs are different from the original sensor IDs stored in the vehicle's E/CU. Relearn is used to write the newly progarmmed sensor IDs into the vehicle's E/CU for sensor recognition.

You can check the OE number of the original sensor. OBD Relearn: Write TPMS sensor ID to TPMS module through OBD connector. Read and erase TPMS error codes. Displays TPMS live data in the form of graphs. Get access to the TPMS E/CU information. Turn off the TPMS malfunction light. [TPMS Progarmming for LAUNCH Sensor].

>>Auto Create: Create a new ID matching your vehicle. Progarm the ID into a new LAUNCH Sensor.

>>Manual Create: The Manual Create function lets users to input the sensor ID manually. Support input of random ID or original sensor ID (if any). >>Copy ID by Activation: Write in the retrieved original sensor data to the LAUNCH-sensor. It is used after the original sensor is triggered. LAUNCH Creader TPMS 5011 V2 can progarm sensor data to LAUNCH sensor and replace the sensor with low battery life or not working properly. It can progarm 8 LAUNCH SENSOR simultaneously. Highly recommended: LAUNCH LTR-03 Sensor. 12 Essential Maintenance Services - Meet Your Daily Needs. LAUNCH Creader TPMS 5011 V2 is equipped with 12 maintenance functions, which are also the most commonly used ones. In addition, we provide a no-hassle service menu and fix cases empowers users to quickly start diagnostics and repair. In situations where the brake pads and brake pad sensors are replaced, the brake pad indicator light is on, or the brake pad sensor circuit is short circuited, Use this tool to reset the brake pad. Reset the oil life systems every time the oil and oil filter are changed. After replacing the battery or battery monitoring sensor, reset the monitoring unit of the car battery. After replacing the steering angle position sensor and mechanical components of the steering system, calibrate the steering angle and clear fault records.

Bleed the brake system to restore ABS braking sensitivity. Initialize the throttle actuator and return to the default state.

Clearing particulate matter from the D-P-F filter through continuous combustion oxidation mode to stabilize filter performance or replace D-P-F components. Quickly search for tire sensor ID from the vehicle E/CU and perform TPMS replacement and sensor testing. After installing or replacing a new fuel injector, code the new fuel injector number to replace the previous one.

Reset the sunroof, closing on rainy days, slide or tilt sunroof memory function, outside temperature threshold, etc. Calibrate the memory in replaced or repaired seats. Perform door window matching to recover E/CU initial memory.

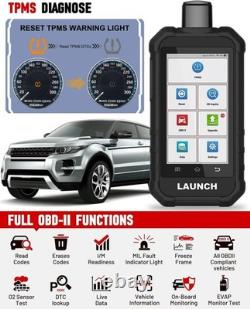

LAUNCH Creader TPMS 5011 V2 provides users with complete OBDII diagnostic functions, it can quickly access and diagnose the engine system of OBDII-compliant vehicles. Show the detailed description of the Diagnostic Trouble Codes (DTCs). Turns off Check Engine Lights (MILs), clears codes and resets monitors.

Reads and displays live E//CU/PCM data stream, plotting functions graphically and stores freeze frame data. Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing. Show the information of continuous data stream from a vehicle in live graphic (waveform) display. Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.

Retrieves and displays test results for emission-related powertrain components and systems. Display the informations such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc. Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

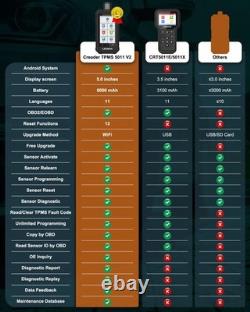

Product Comparison Between Creader TPMS 5011 V2 and CRT5011E/CRT5011X. 918VDC input via vehicle diagnostic socket/5V via USB cable. German, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, Arabic.

German, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, Polish. It is quick and safe. Normally we would mark the parcel in low value to avoid the duty, but different country, the policy is different, hence to find out which if any of these may apply, please contact your local government. Our test engineer will check for quality, including check the basic function of the hardware and software, the appearance, the packing, the necessary accessories and power adapter plug standard. After finish quality check, our QC stuff will carefully do quality check and paste our own QC label in the form of month/date/year on every product.
